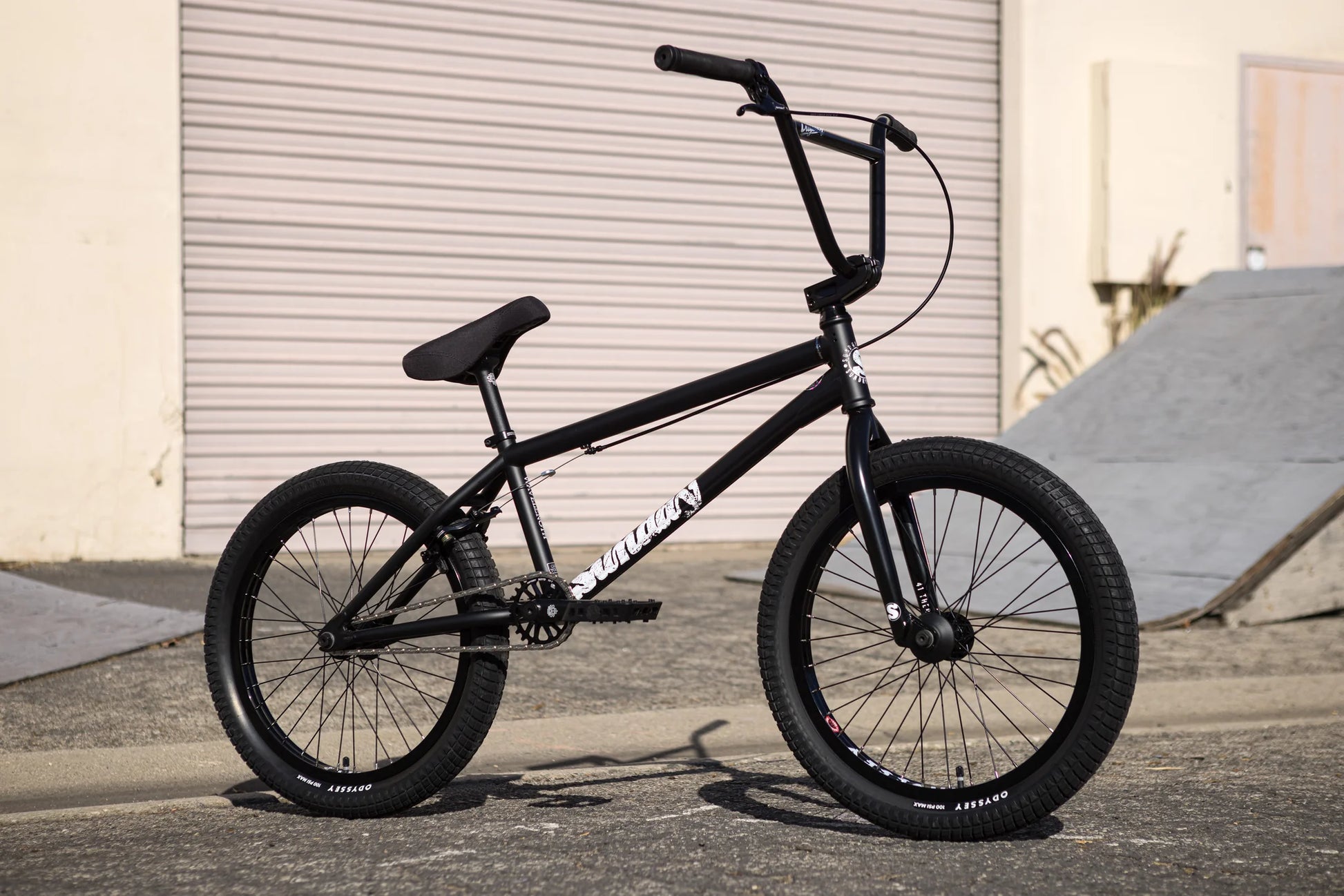

Sunday Soundwave Special Complete

This is the best complete bike that money can buy.

The Soundwave Special continues to offer the unmatched 41-Thermal® Lifetime Warranty on its Soundwave frame, Darkwave fork, Super Highway bars, and Thunderbolt cranks. Combine that with a long list of Odyssey parts, and you easily have a bike with no equals.

KEY FEATURES

• 100% aftermarket
• 41-Thermal® Lifetime Warranty on Frame, Fork, Bars, and Cranks
• Sunday Soundwave v3 Frame
• Sunday Darkwave Forks
• Odyssey Super Highway Bars
• Odyssey Thunderbolt Cranks
• Odyssey Utility Pro Sprocket
• Odyssey Hazard Lite Rims
• Odyssey Clutch v2 Freecoaster
• Odyssey Path Pro Tires

• Right Hand or Left Hand Drive

SPECIFICATIONS

Frame: Sunday Soundwave v3, 21" top tube, 100% chromoly aftermarket frame, 41-Thermal® lifetime warranty, removable brake hardware
Fork: Sunday Darkwave, 20", 100% chromoly aftermarket fork, 41-Thermal® lifetime warranty, 28mm offset
Handlebar: Odyssey Super Highway,100% chromoly aftermarket bar, 2-piece
Stem: Sunday Freeze top load, 48mm
Headset:  FSA integrated conical, 1-1/8"
Alloy Cap: Sunday aftermarket, aluminum
Brake Lever: Odyssey Monolever
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Quik Slic
Grips: Odyssey BROC
Seat: Odyssey Slugger Stitch, Pivotal
Seat post: Odyssey Pivotal
Seat Clamp: Sunday aftermarket
Sprocket: Odyssey Utility Pro, 25T w/ plastic guard
Cranks: Odyssey Thunderbolt+, 170mm, 100% chromoly, 41-Thermal® lifetime warranty, LHD or RHD
BB Parts: Sealed, Mid, 22mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Hazard Lite, 20", 36H
Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
Rear Hub: Odyssey Clutch v2 Freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive plastic guard
Spokes: 14g steel, black
Tires: Odyssey Path Pro, aftermarket, 20 x 2.4" (F & R)
Chain: KMC Z1 eHX-W
Approx. Weight: 23.41lbs (brakeless)

FRAME GEOMETRY

Top Tube Length: 21"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2" - 13.5"
Bottom Bracket Height: 11.5"
Standover: 9”

HANDLEBAR GEOMETRY

Rise: 9.5"
Width: 29"
Backsweep: 11°
Upsweep: 1°
