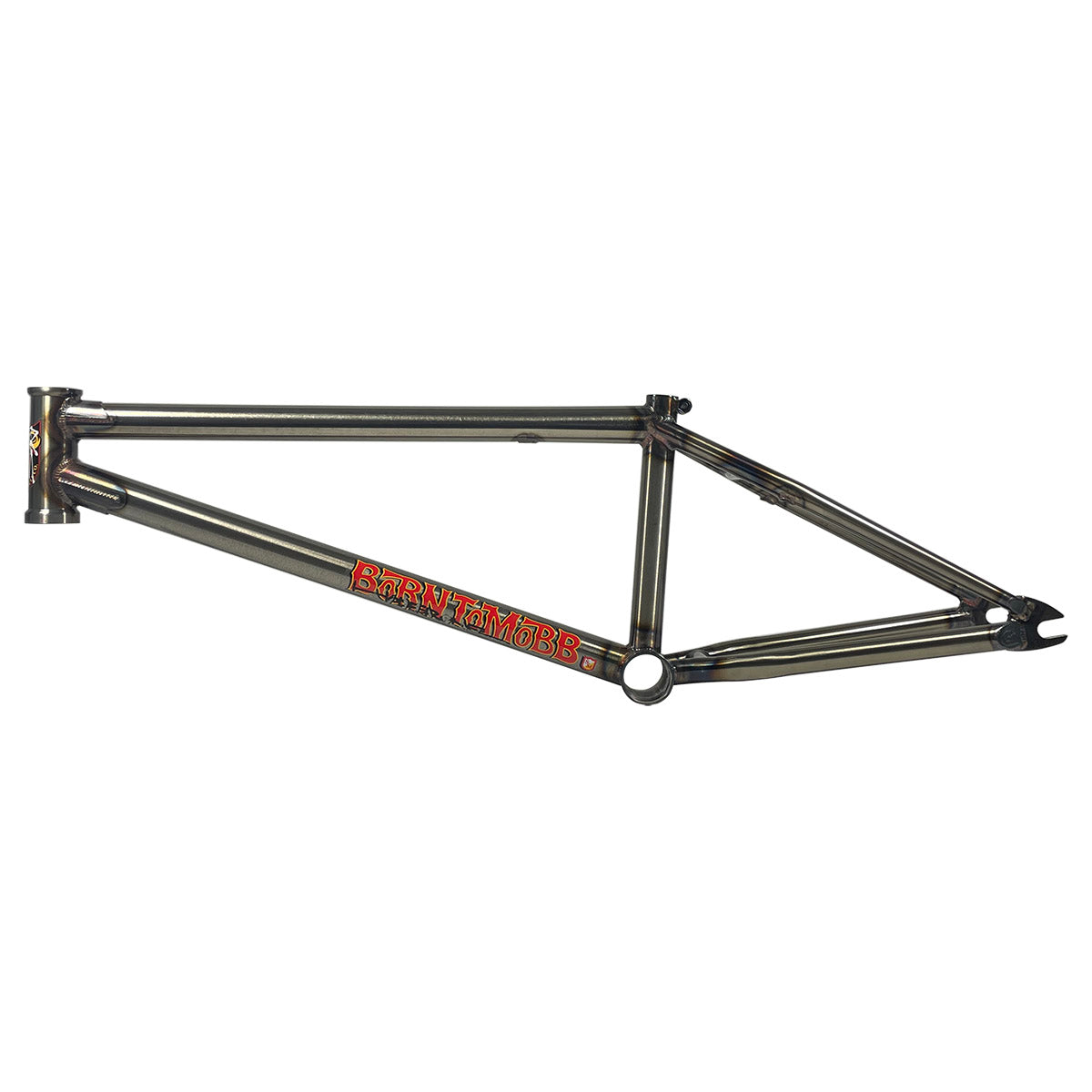

S&M Hoder BTM Frame
$519.99
| TOP TUBE LENGTHS: | 20.5",20.75", 21", 21.25" |
| REAR END LENGTH: | 13.05"-13.5" |
| HEAD TUBE ANGLE: | 75° |
| HEAD TUBE STYLE: | Integrated (45°/45°, 41.8mm), Drilled for head badge |
| SEAT TUBE ANGLE: | 71° |
| SEAT CLAMP: | Integrated |
| SEAT POST SIZE: | 1" (25.4mm) |
| BB HEIGHT: | 11.5" |
| BB STYLE: | Mid |
| STANDOVER HEIGHT: | 8.75" |
| BRAKE MOUNTS: | Thread-On (sold separately) 990 Mounts |
| DROPOUTS: | 14mm Slot, 4Q-Baked |
| GYRO TABS: | None |
| WEIGHT: | 20.75": 4.65lbs/2.11kg 21": 4.675lbs/2.12kg 21.25": 4.678lbs/2.12kg |
| TUBESET: | Butted True Temper SuperTherm Tubing |
