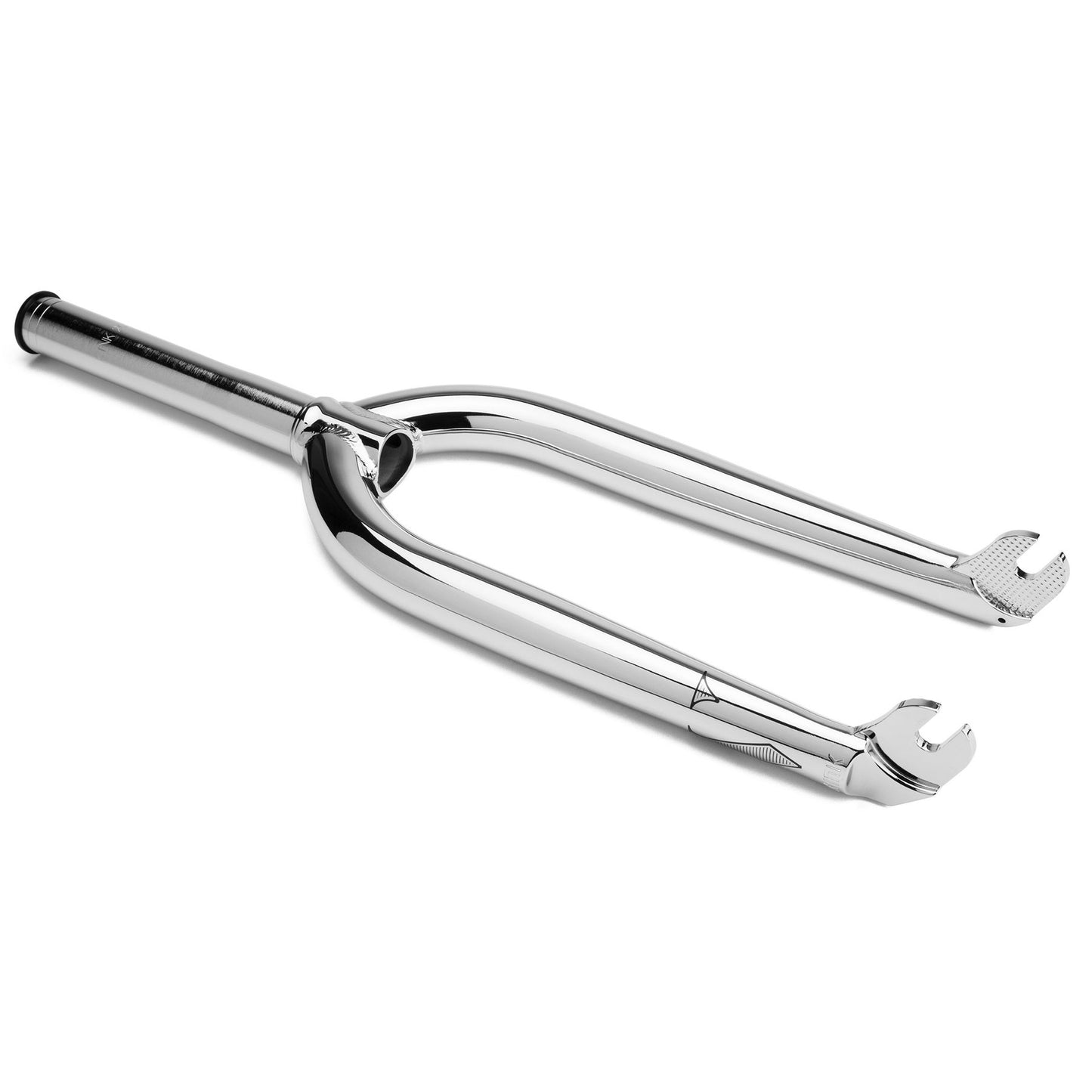

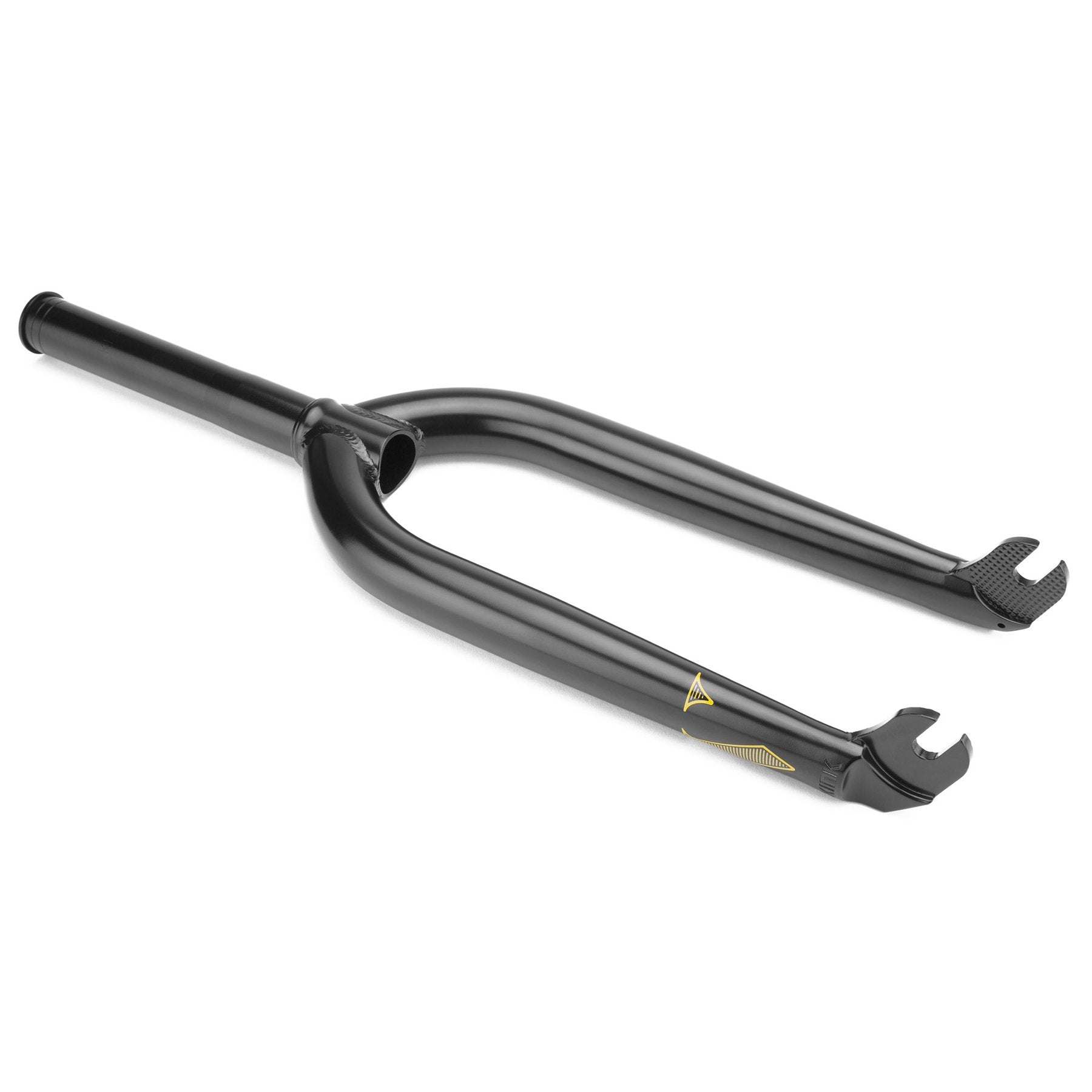

Kink Vogue Forks
$169.99
The Kink Vogue forks check all the boxes; strength, feel, and aesthetics. The fork legs feature a custom oval tube profile, welded up to a fully CNC’d steerer tube with internal butting to add strength where it’s needed. The investment cast dropouts are one single piece making them super strong and feature interior knurling to keep your wheel and plastic hub guards in place. The 25mm offset gives a responsive feel, without being too short or too raked out. Kink Vogue forks also feature steerer tube cut lines for those riders wanting to trim down their steerer, and the fork legs are designed to fit all modern tire widths up to 2.55”.
TECH SPECS
Fork Height | 316mm |
Steerer Tube Length: | 165mm |
Dropout Offset | 25mm |
Dropout Slot | 10mm (3/8") |
Dropout Thickness | 5mm |
Bearing Race | Integrated |
Compression Bolt Thread | M24×1.5mm |
Compression Bolt Hex | 7075-T6 3/8" Ratchet and 6mm Allen Key |
Heat Treatment | TruTherm Post Weld Heat Treated |
Weight | 33.9 oz (Including Fork Bolt) |
