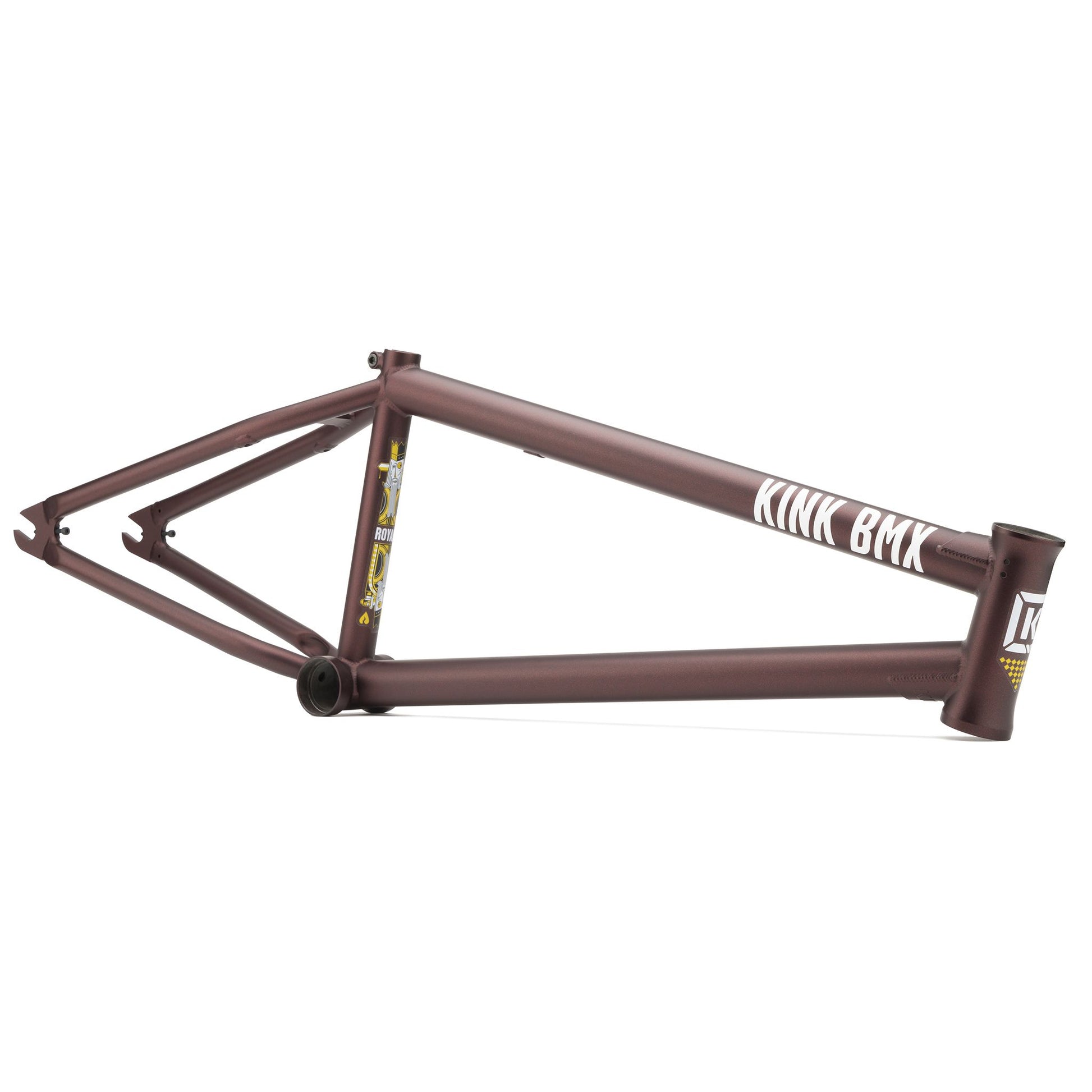

All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76-degree headtube angle and 12.5” chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding. 100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55” and the seatstay bridge features a brass badge inlay. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake mount lugs for those looking to install brakes.
GEOMETRY
Toptube Sizes
20.5”, 20.75”, 21”, 21.25”
Chainstay Length
12.5" Slammed
Bottom Bracket Height
11.7"
Standover Height
9"
Headtube Angle
76°
Seattube Angle
71°
Headtube Height
5"
TECH SPEC
Material
100% 4130 Chromoly Tubing
Headtube
Integrated Campy Spec
Dropouts
Laser cut with Integrated Chain Tensioners
Bottom Bracket
Internally and Externally Machined Mid Size BB
Braking
Removable Through-Bolt Brake Mount System (Hardware Not Included)
Particulars
Toptube and Downtube Gussets Integrated Seat Clamp Interior Chainstay Forming for 2.55” Tire Clearance CNC’d Seatstay Bridge with Kink Badge Inlay
