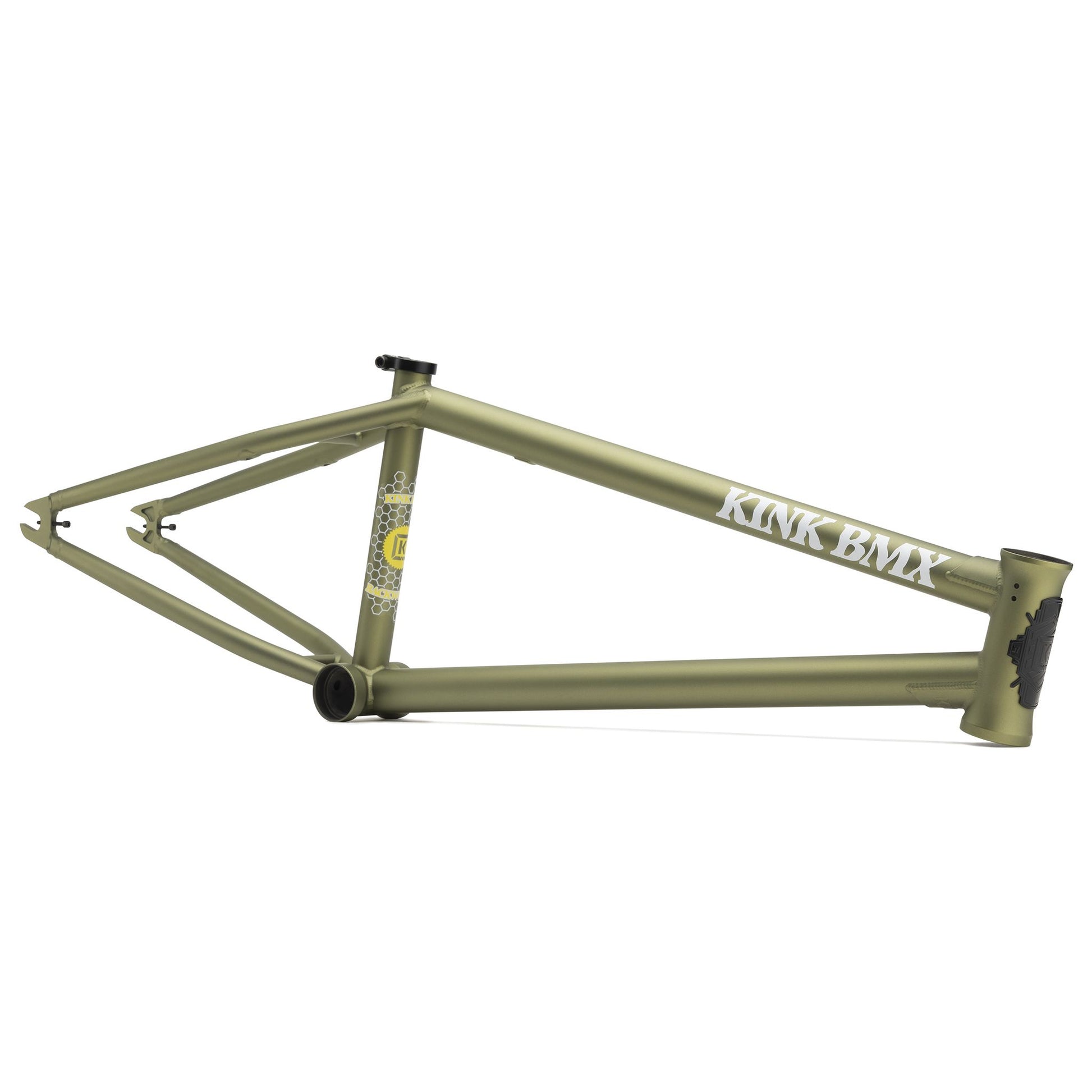

Kink Backwoods Frame
$379.99
Classic and timeless design is what the Backwoods frame is all about. Built for the trails, but just as ready to ride at the park or in the streets. The narrow toptube and downtube both feature gussets, so the frame can maintain it’s classic look without compromising on strength. The tapered rear triangle tubing looks sleek but maintains its stiffness where it needs to. Included Kink Master Clamp features a 5mm/6mm combo bolt that makes adjustment super convenient, and the K-Brick headtube badge really finishes off the look. Integrated chain tensioners, removable brake mounts and big tire clearance are just a few of the other features for modern day conveniences and compatibility.
GEOMETRY
Toptube Sizes: 20.75”, 21”, 21.25”, 21.5”
Chainstay Length: 13.5” Slammed
Bottom Bracket Height: 11.6”
Standover Height: 9”
Headtube Angle: 74.5°
Seattube Angle: 71°
Material: 100% Seamless Sanko 4130 Chromoly Tubing
Headtube: Integrated Campy Spec
Dropouts: Investment Cast with Integrated Chain Tensioners
Bottom Bracket: Internally and Externally Machined Mid BB
Braking: Include Removable Through-Bolt Brake Mount System
Particulars: Toptube and Downtube Gussets
Wide Stays for Big Tire Clearance
Includes Kink Master Clamp Seat Clamp
Tapered Seatstay and Chainstay Tubes
Simple Straight Seatstay and Chainstay Bridges
K-Brick Headtube Badge
Weight: 4lb 15oz (20.75")
Toptube Sizes: 20.75”, 21”, 21.25”, 21.5”
Chainstay Length: 13.5” Slammed
Bottom Bracket Height: 11.6”
Standover Height: 9”
Headtube Angle: 74.5°
Seattube Angle: 71°
Material: 100% Seamless Sanko 4130 Chromoly Tubing
Headtube: Integrated Campy Spec
Dropouts: Investment Cast with Integrated Chain Tensioners
Bottom Bracket: Internally and Externally Machined Mid BB
Braking: Include Removable Through-Bolt Brake Mount System
Particulars: Toptube and Downtube Gussets
Wide Stays for Big Tire Clearance
Includes Kink Master Clamp Seat Clamp
Tapered Seatstay and Chainstay Tubes
Simple Straight Seatstay and Chainstay Bridges
K-Brick Headtube Badge
Weight: 4lb 15oz (20.75")
