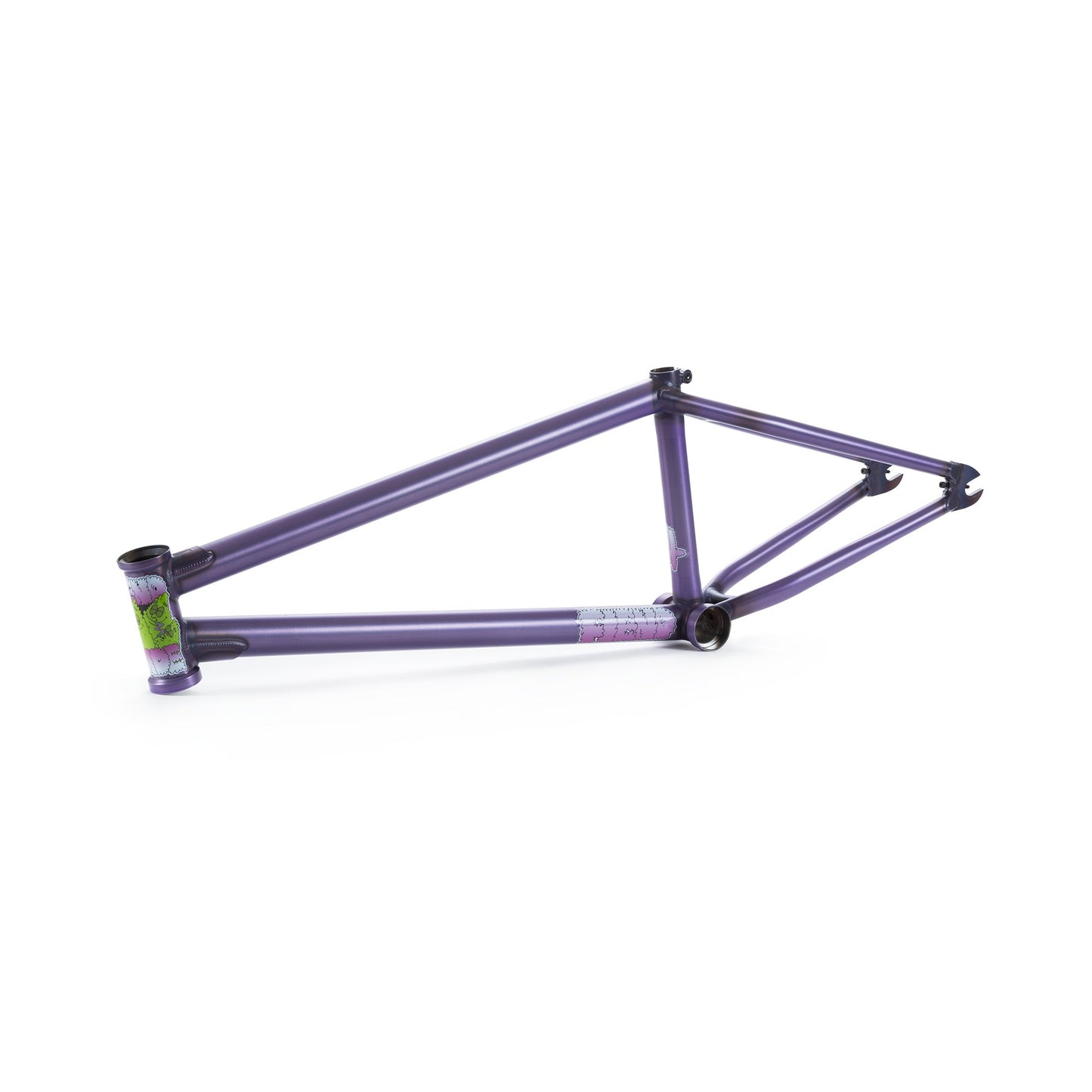

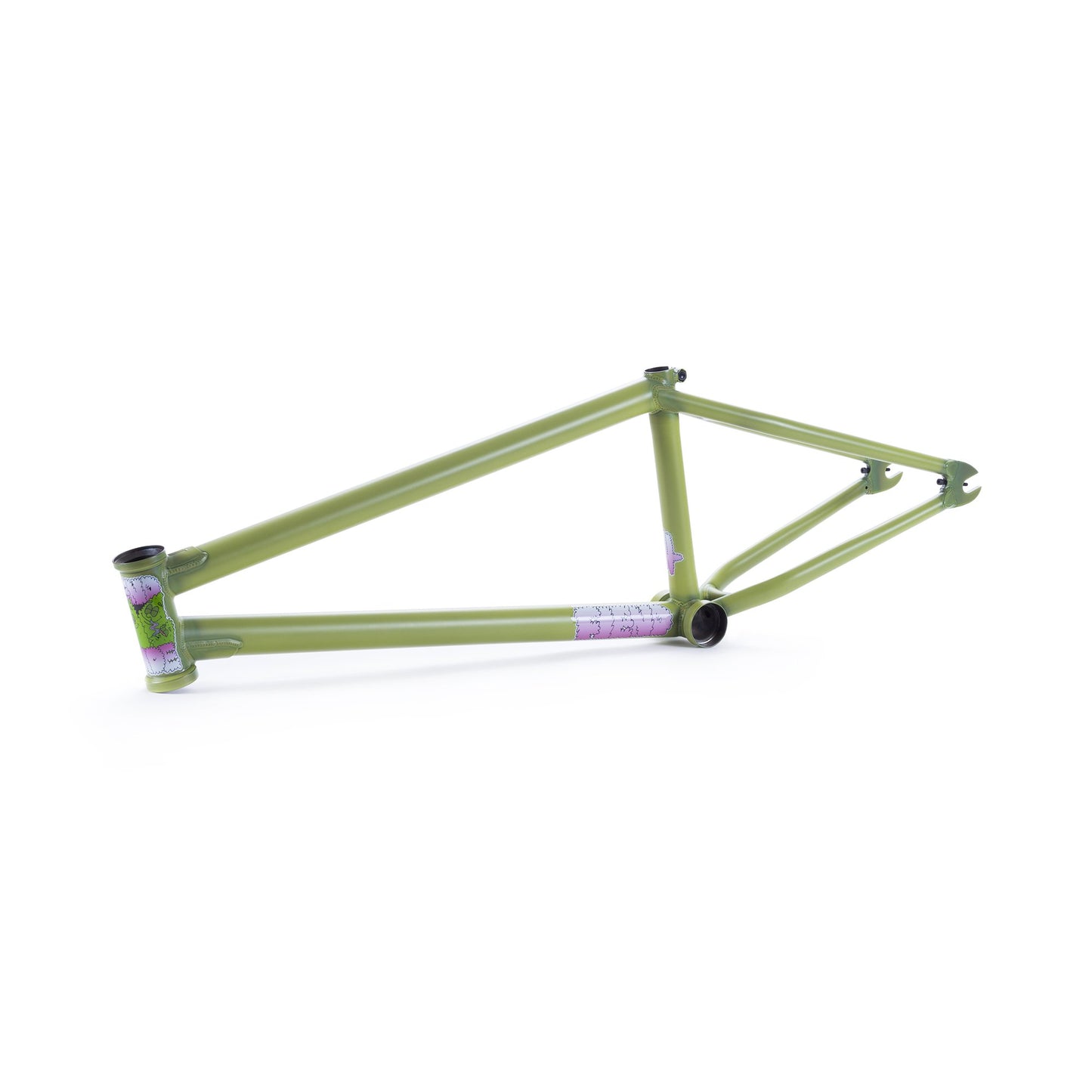

Fiend Ty Morrow V4 Frame
Designed by Ty Morrow and constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated head tube, a double-butted top tube with external gusset, oval double-butted down tube with external gusset, externally butted seat tube with integrated clamp, tapered seatstays and heat-treated 6mm thick dropouts with integrated tensioners.
*Due to the nature of semi-transparent paint finishes the character of the raw tubing
will be visible and may contain vein-like abnormalities making each frame unique.
20.5″, 20.75″, 21″, 21.25″ top tube lengths
75.5* head tube
71* seat tube
9″ seat tube height (bottom bracket to top tube, center to center)
12.9″ chain stays
11.625″ BB height
5.0lbs. @ 20.75″
