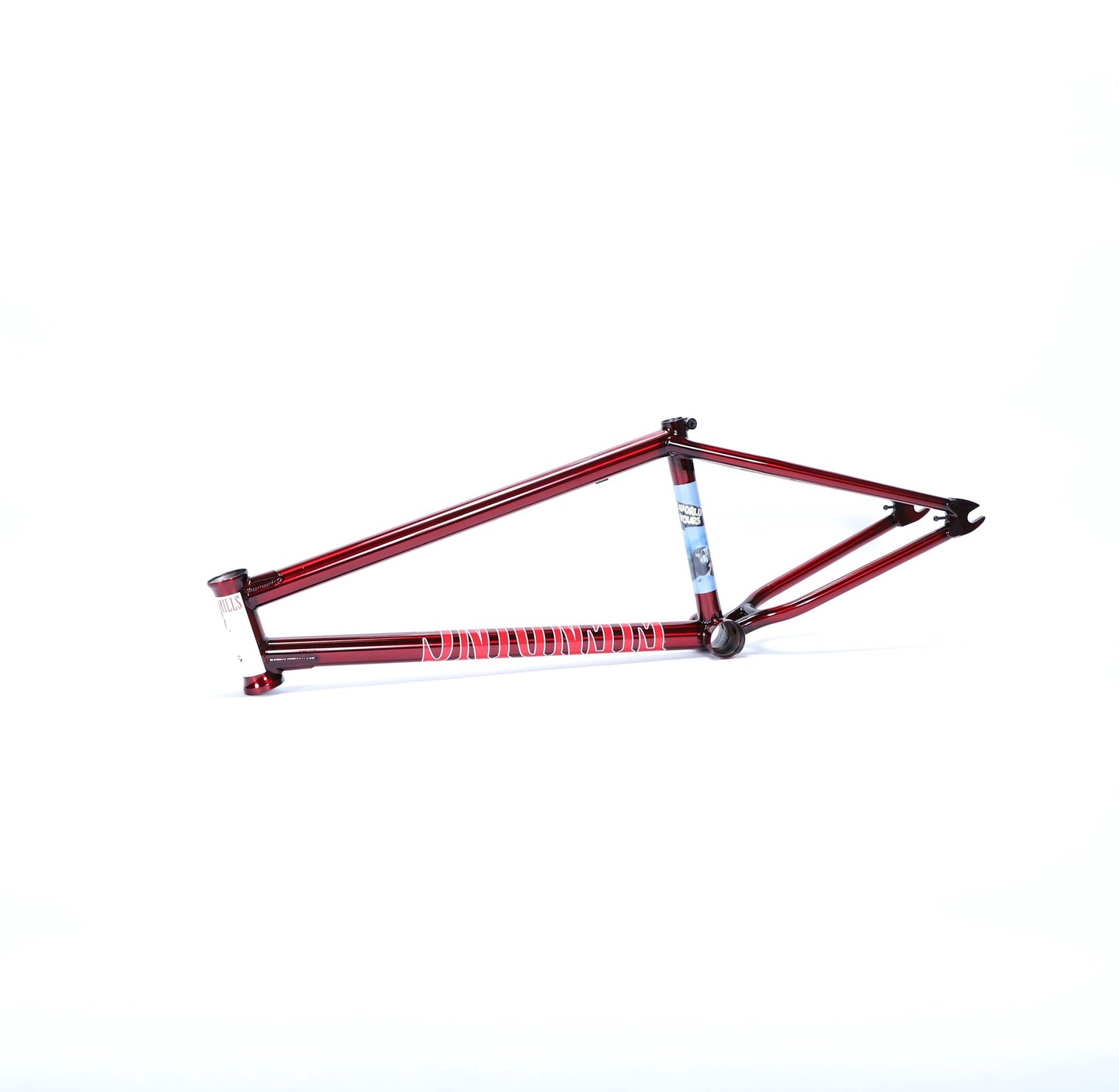

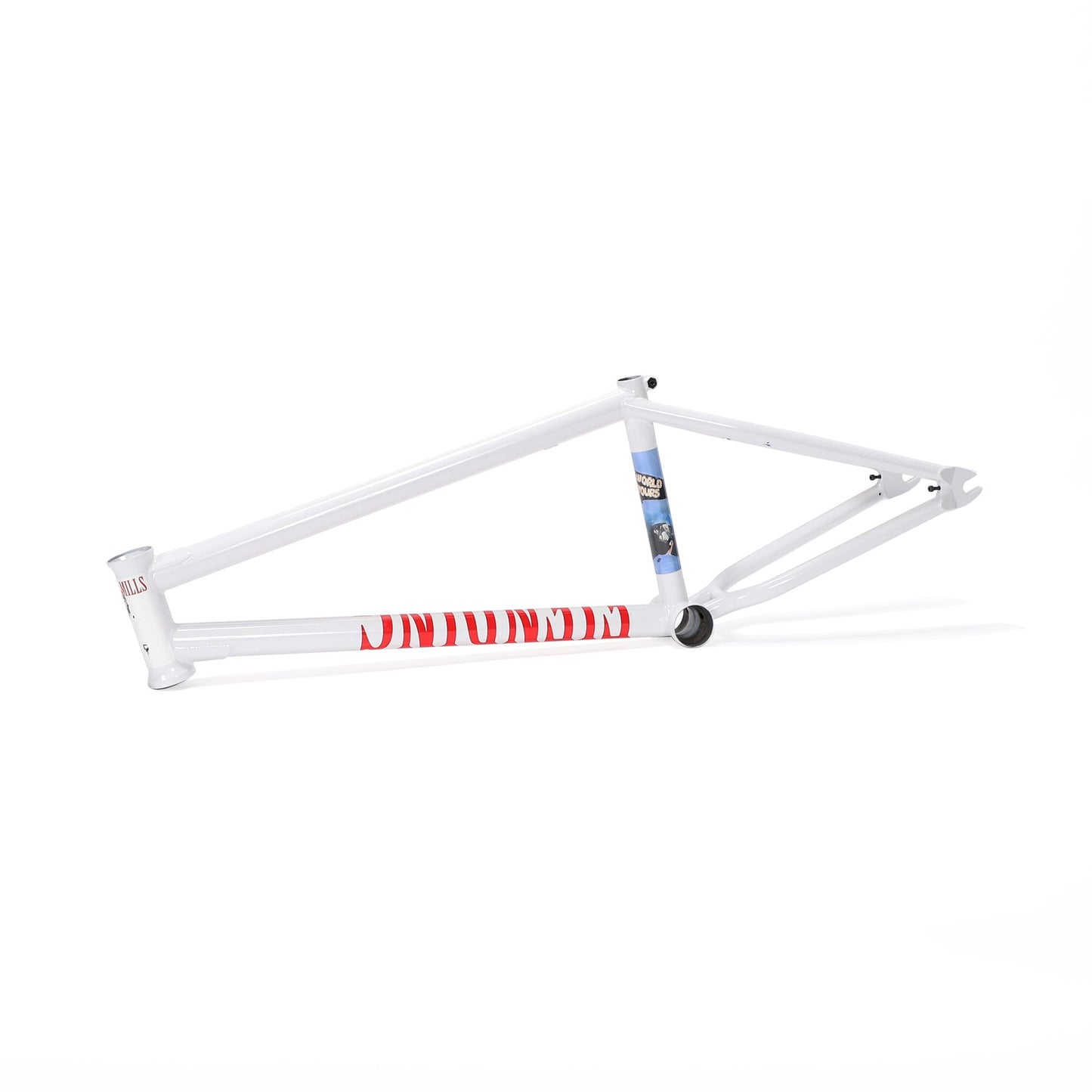

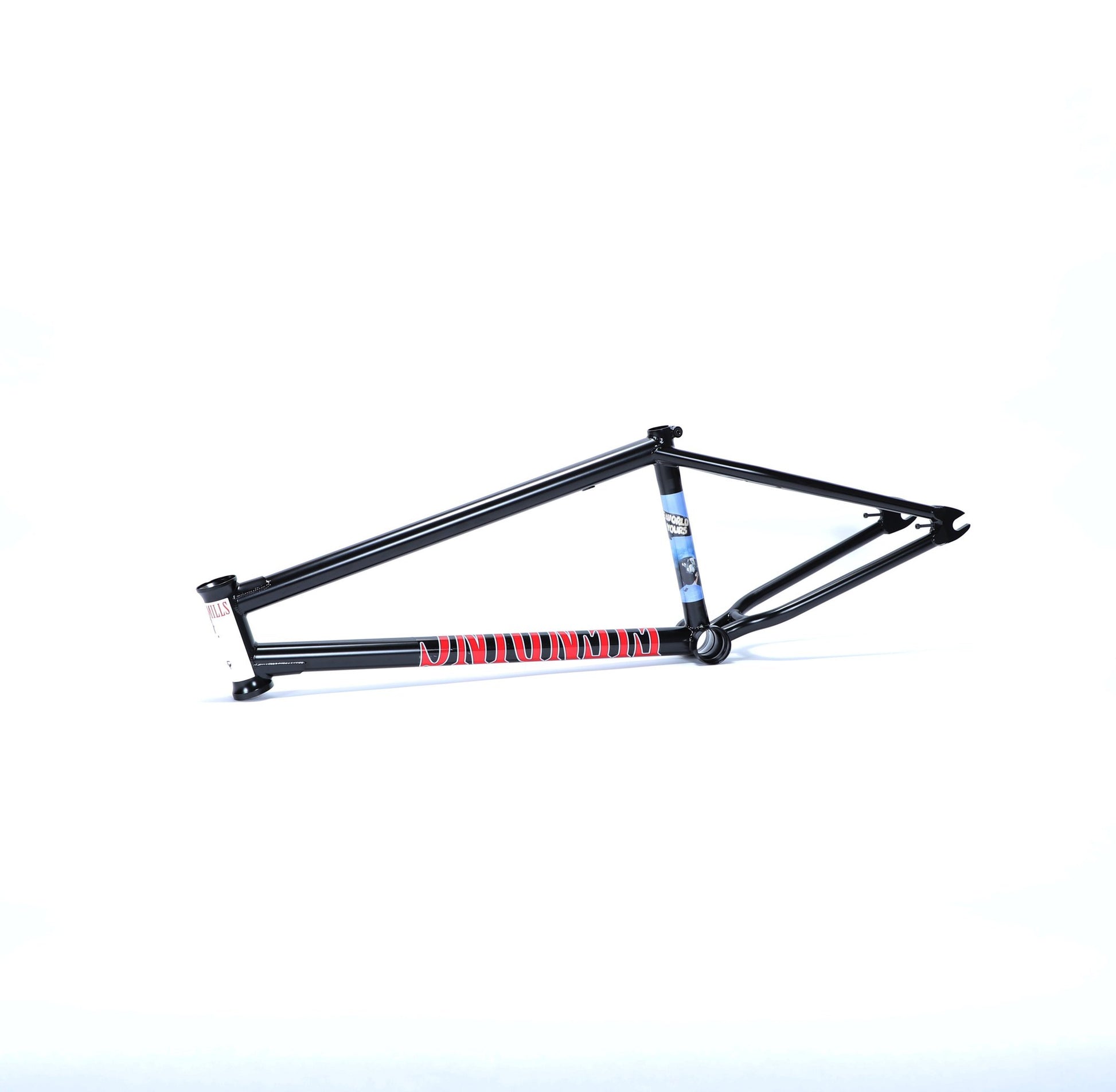

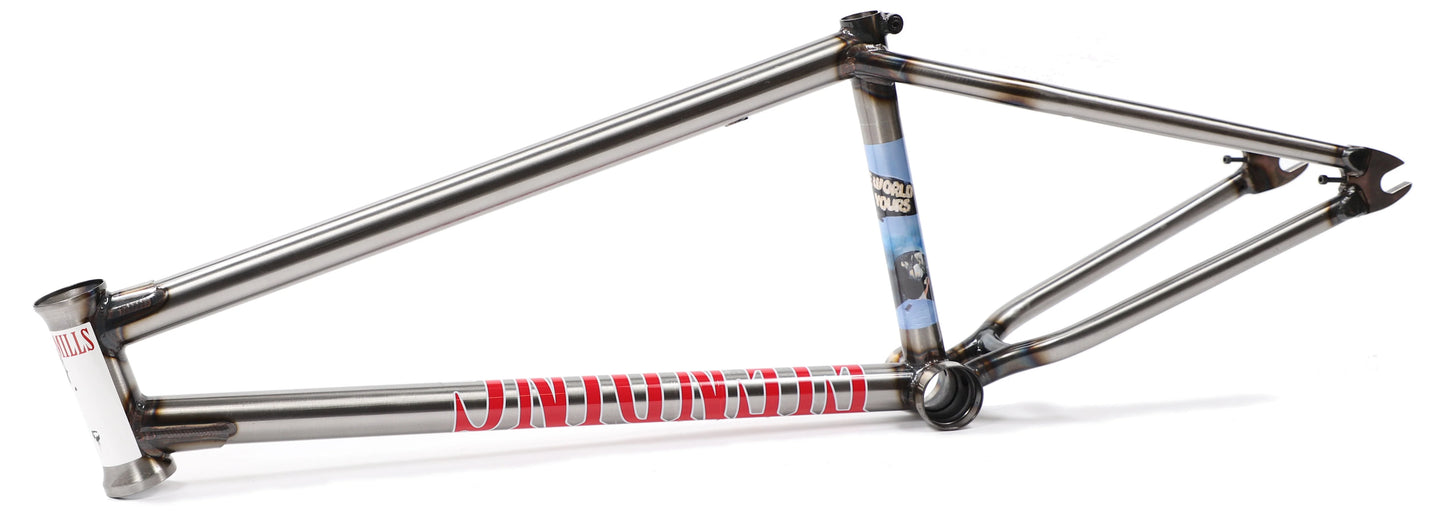

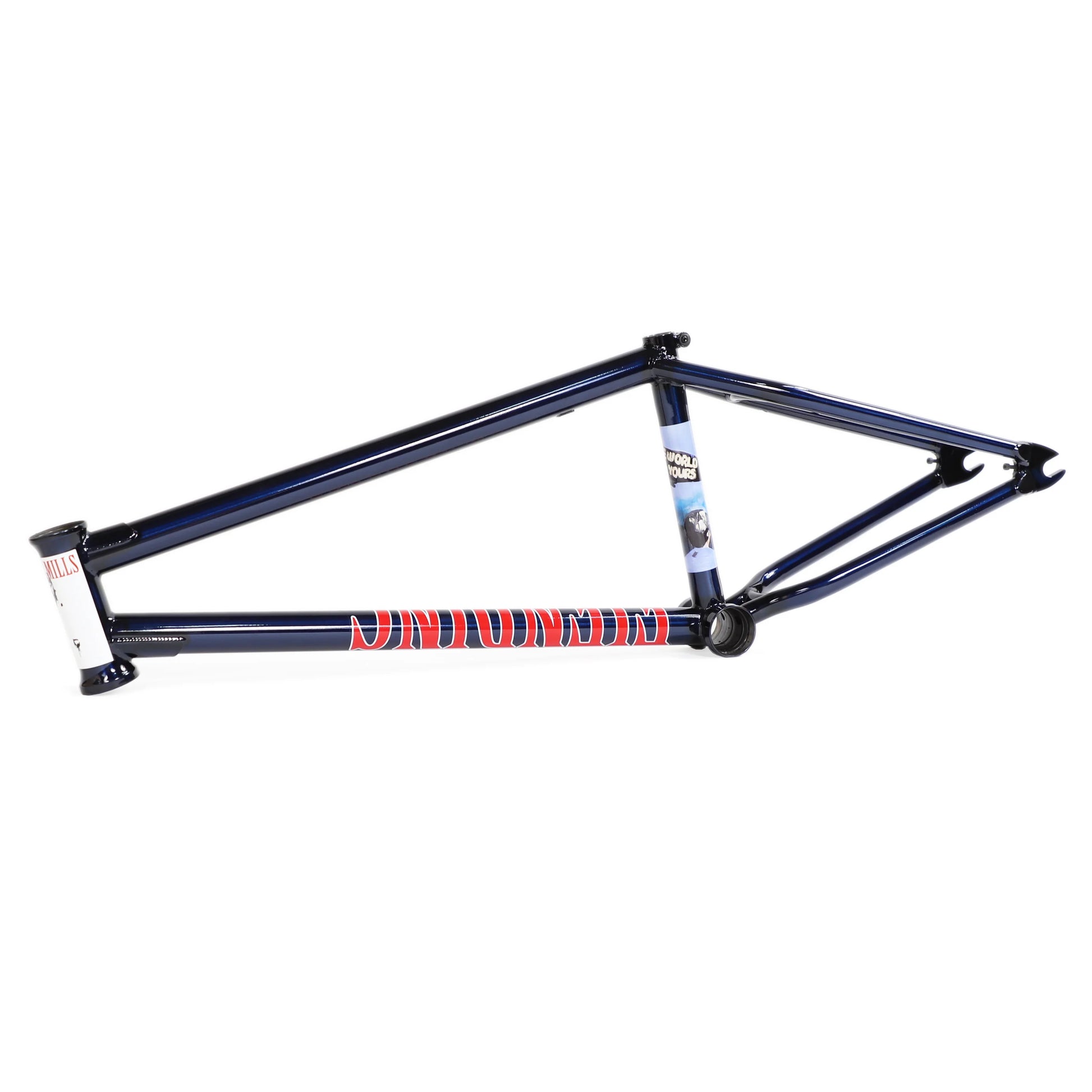

Fiend Mills Frame
$449.99
Designed by Lewis Mills. Constructed from heat-treated 4130 chromoly with an internal gusset in the top tube and an external gusset on the down tube. The frame’s tubing is double butted with a heat-treated Mid BB shell and head tube, externally butted seat tube with integrated post clamp and 8mm thick investment cast dropouts with integrated chain tensioners.
Geometry:
20.5″, 20.75″ & 21″ top tube lengths
HT 75.5*
ST 71*
CS 13.1″
9.5″ seat tube height (bottom bracket to top tube, center to center)
BB height: 11.625″
Weight: 5lbs. @ 20.75″
