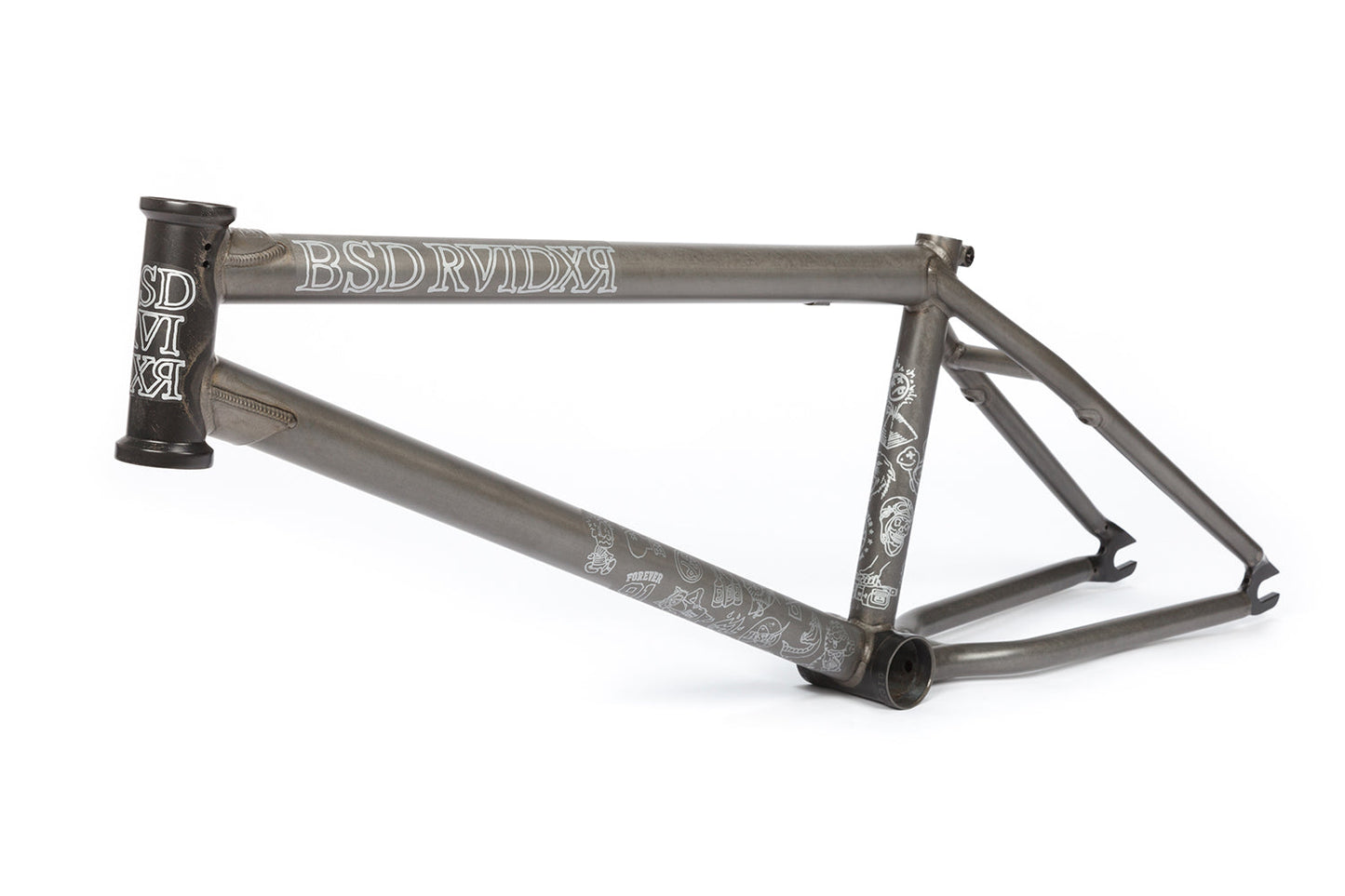

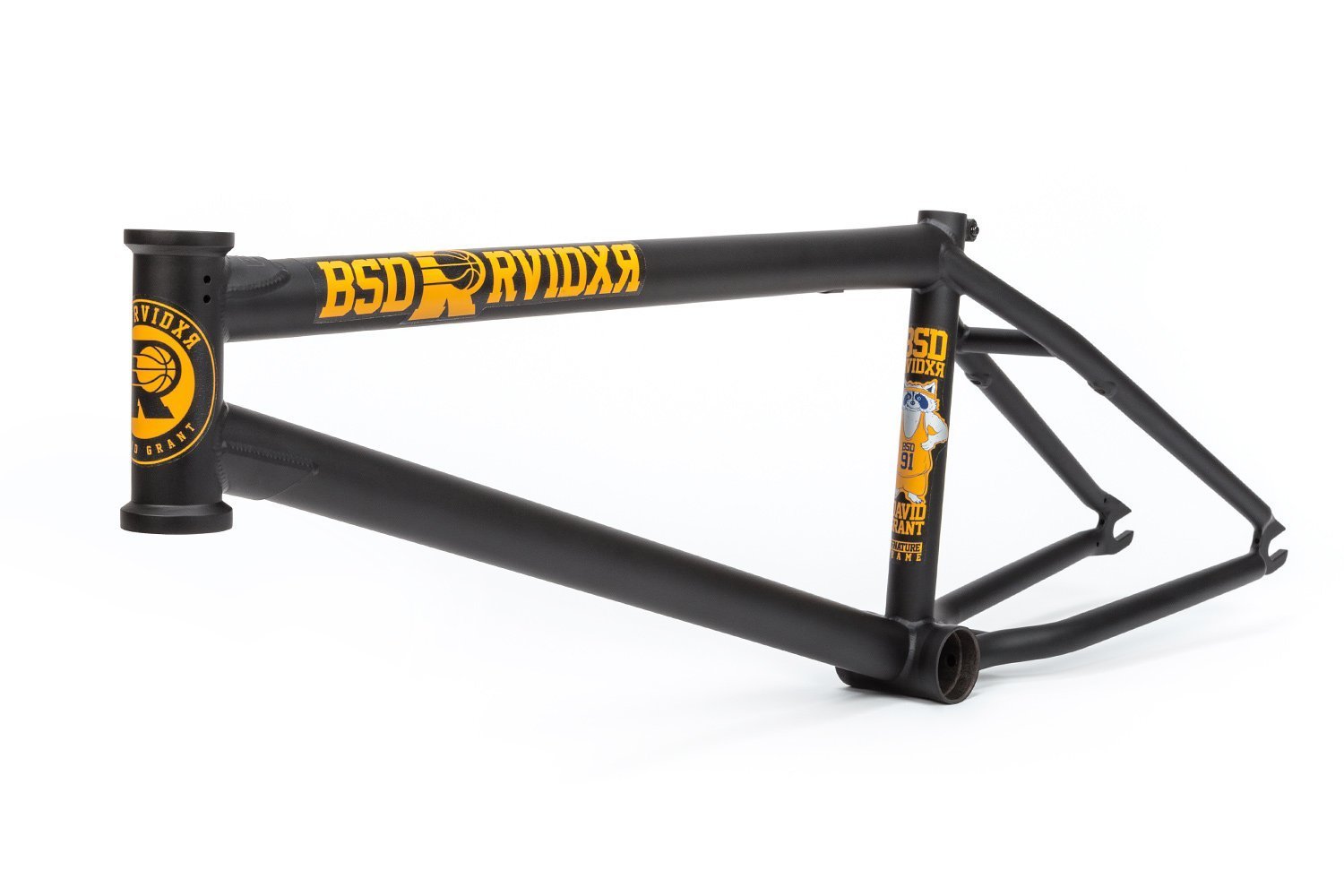

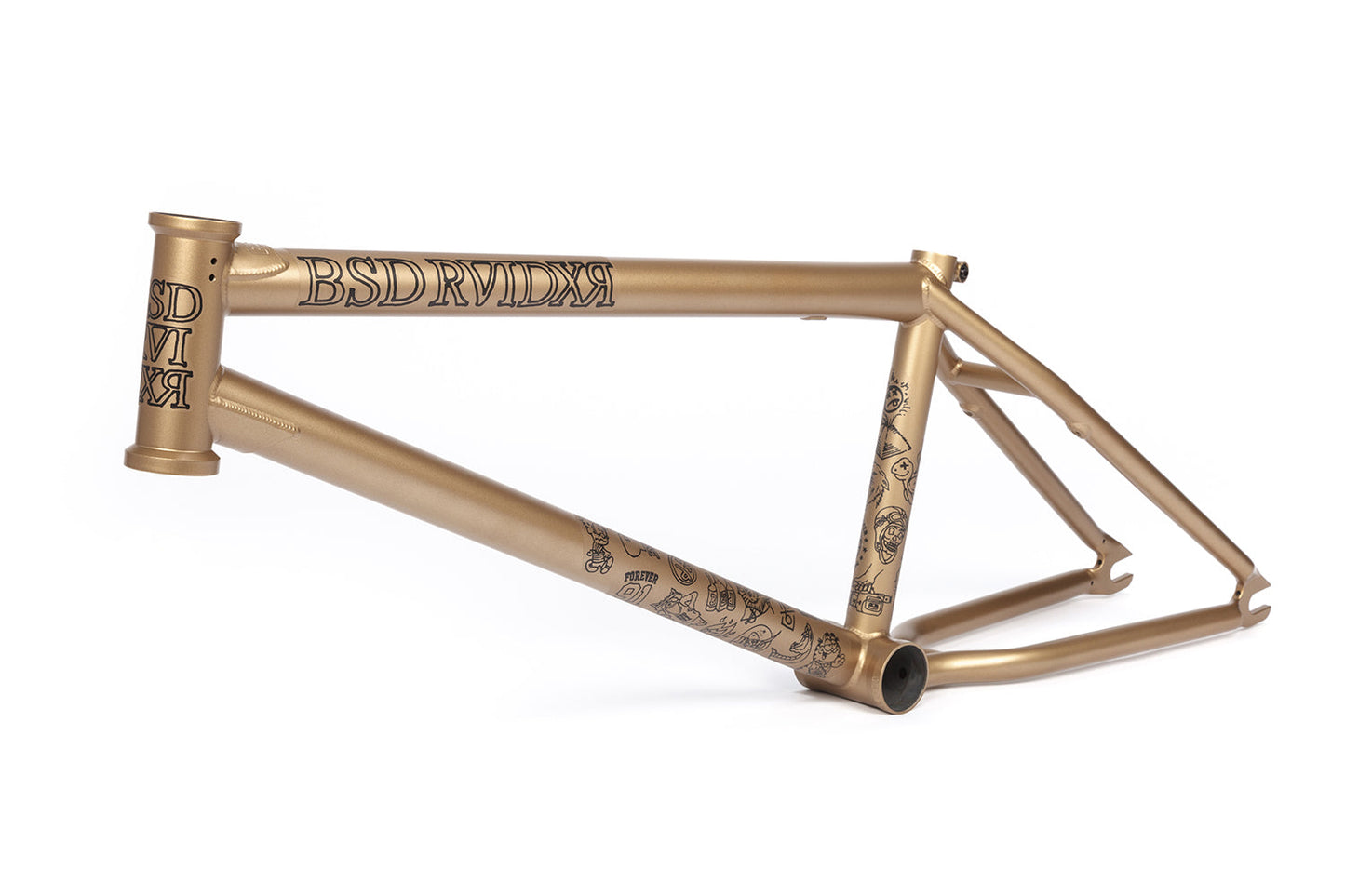

BSD Raider V3 Frame
$309.99
The BSD Raider V3 Frameis David Grant's signature frame featuring a new, bigger than ever, 21.9" toptube, a longer rear end, invest cast dropouts with built in chain tensioners and super tall geometry.
Other Features Include:
Specifications:
Other Features Include:
- New invest cast 7mm thick dropouts with built in chain tensioners
- External gussets on TT and DT
- Extra wide rear end for fat tires
- Curved ends on stays for peg clearance
- Tapered seat and chainstays
- Internally relieved headtube
- Built in seatclamp
- Mid bottom bracket
- Heat treated dropouts, BB and headtube
- Removable brake mounts
Specifications:
- Toptube Lengths: 20.7", 21", 21.3", 21.6" and 21.9"
- Headtube Angle: 75.2°
- Seattube Angle: 71°
- Rear End Length: 13.5 – 14"
- BB Height: 11.75"
- Standover Height: 9.5"
- Weight: 5 lbs
- Tubing: Sanko Japanese seamless 4130 chromoly
